IS 3829 · ISO 13485 · CE Marked

HPHV Steam Sterilizers & Autoclaves

Complete range of High-Pressure High-Vacuum steam sterilizers for Indian hospitals, CSSD departments, and global export — manufactured in Vadodara, Gujarat.

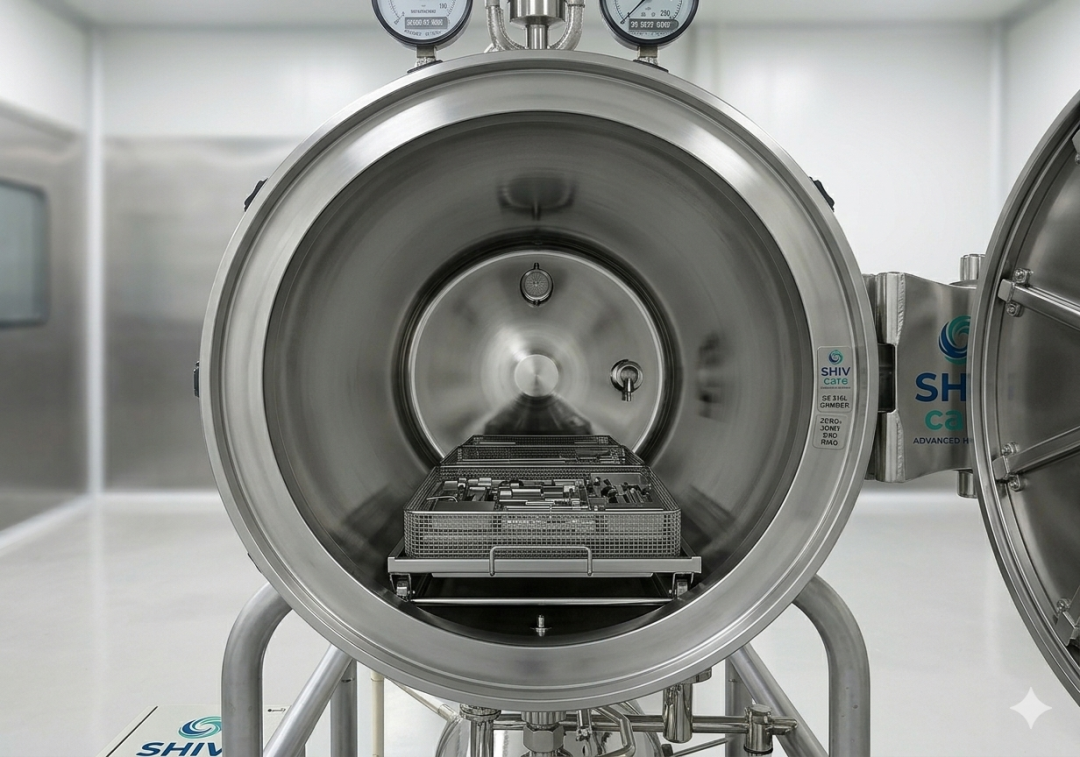

SHIVcare horizontal cylindrical HPHV steam sterilizer — IS 3829 certified

Horizontal Cylindrical HPHV Steam Sterilizer

The flagship SHIVcare model. Designed for general-purpose CSSD departments, operation theatre instrument sterilization, and compact hospital layouts. Built from SS 316L with zero-joint hydraulically formed end rings — the most reliable chamber design for high-cycle environments.

SS 316L Zero-Joint 1.2–2.2 kg/cm² PLC + 7″ HMI 100L – 600L IS 3829 P1 & P2 GEM Listed

Operating Pressure

1.2 – 2.2 kg/cm²

Temperature

121°C / 134°C

Chamber Volumes

100L to 600L

Certification

IS 3829 P1 & P2

Full Specifications → Get a Quote

For Large Hospitals & CSSD

Rectangular HPHV Steam Sterilizer

Designed for high-throughput Central Sterile Supply Departments (CSSD) in tertiary care hospitals and medical colleges. The rectangular chamber maximises tray loading capacity over cylindrical designs of equivalent volume, reducing cycle frequency for busy CSSD workflows.

Available in single-door and full double-door pass-through configuration for strict clean/dirty zone separation — a mandatory requirement for NABH CSSD chapter compliance.

SS 316L Zero-Joint 1.2–2.2 kg/cm² Double-Door Option 300L – 1000L IS 3829 P1 & P2 NABH CSSD Ready

Operating Pressure

1.2 – 2.2 kg/cm²

Temperature

121°C / 134°C

Chamber Volumes

300L to 1000L

Door Options

Single / Double

Full Specifications → Get a Quote

SHIVcare rectangular HPHV steam sterilizer for CSSD — IS 3829 certified

SHIVcare complete CSSD sterilization room setup

Turnkey

Complete CSSD Solutions

For hospitals planning a new CSSD or upgrading an existing sterilization department, SHIVcare provides a complete turnkey solution — from layout design and equipment supply to installation, validation, and operator training.

Every CSSD layout is designed to comply with NABH Chapter 4 (CSSD) requirements with proper decontamination, packing, sterilization, and storage zone separation.

📐

CSSD Layout Design

Zone-compliant layout drawings for new hospital construction or renovation projects.

🔬

Complete Equipment Package

Sterilizers, washer-disinfectors, ultrasonic cleaners, drying cabinets, sterile storage — single-vendor supply.

📋

IQ / OQ / PQ Validation

Complete qualification documentation package for NABH accreditation.

Enquire for CSSD Solution

Product Comparison

Which Sterilizer Is Right for You?

Side-by-side comparison of both HPHV sterilizer models to help your biomedical team and purchase committee specify correctly.

Parameter	Horizontal Cylindrical HPHV	Rectangular HPHV
Chamber Shape	Cylindrical	Rectangular (box)
Volume Range	100L – 600L	300L – 1000L
Tray Loading Efficiency	Good	Higher — rectangular trays fit fully
Operating Pressure	1.2 – 2.2 kg/cm²	1.2 – 2.2 kg/cm²
Sterilization Temp	121°C / 134°C	121°C / 134°C
Chamber Material	SS 316L Zero-Joint	SS 316L Zero-Joint
PLC Touch HMI	✔ Standard	✔ Standard
Double-Door Pass-Through	Optional (300L+)	✔ Standard option
Pre-Vacuum (SFPP)	✔ Standard	✔ Standard
IS 3829 P1 & P2 Cert.	✔ Certified	✔ Certified
ISO 13485:2016	✔ Certified	✔ Certified
CE Marking	✔ Marked	✔ Marked
GEM Registered	✔ Available	✔ Available
Best Suited For	Nursing homes, clinics, small–mid hospitals, OT complexes	Tertiary care hospitals, medical colleges, large CSSD

Speak to Our Technical Team
