Built for high-throughput Central Sterile Supply Departments. SS 316L zero-joint rectangular chamber delivers superior tray loading, double-door pass-through for NABH clean/dirty zone compliance, and PLC automation with full audit trail. 300L to 1,000L.
The SHIVcare Rectangular High-Pressure High-Vacuum (HPHV) Steam Sterilizer is engineered for the demanding requirements of large Central Sterile Supply Departments (CSSD) in tertiary care hospitals, medical colleges, and multi-speciality chains across India.

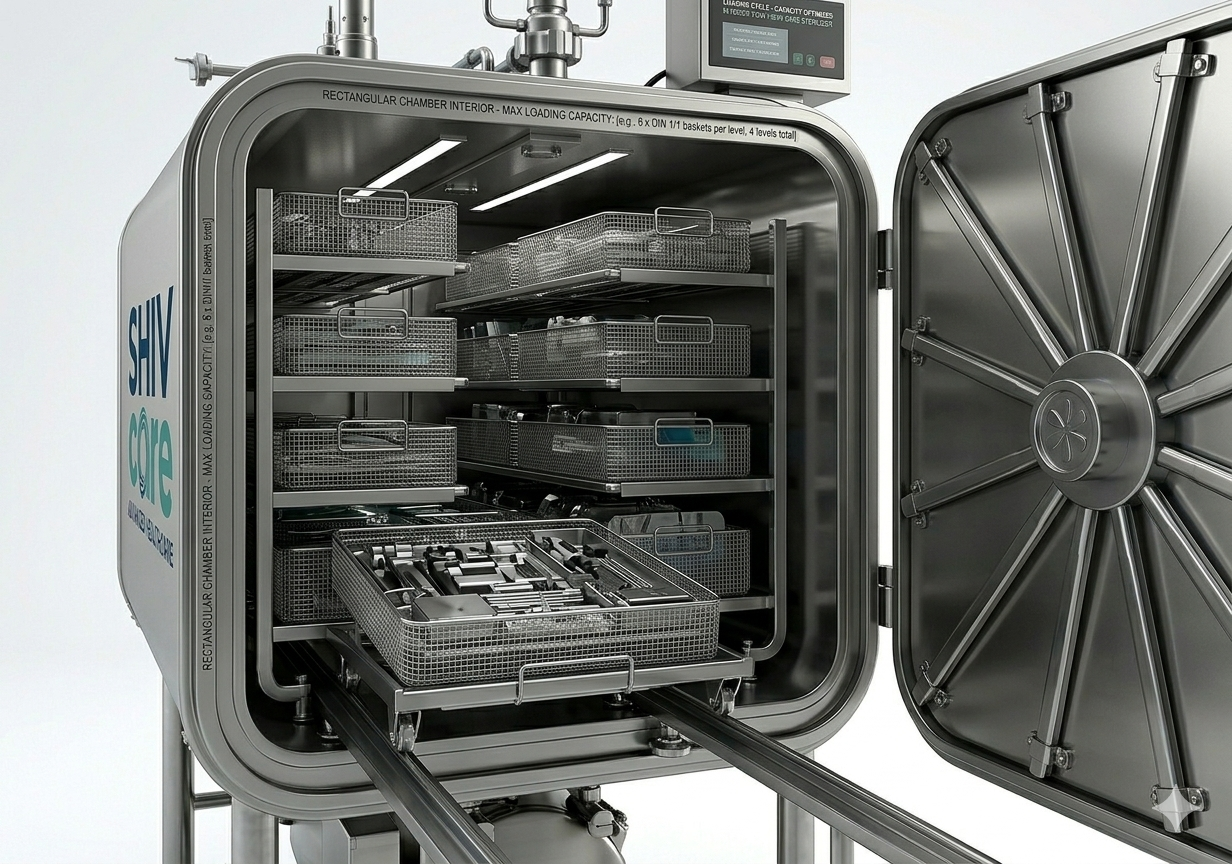

The rectangular chamber design provides significantly better utilisation of instrument trays and DIN baskets compared to cylindrical designs of equivalent volume — reducing the number of sterilization cycles required per OT session and improving CSSD throughput for busy surgical departments.

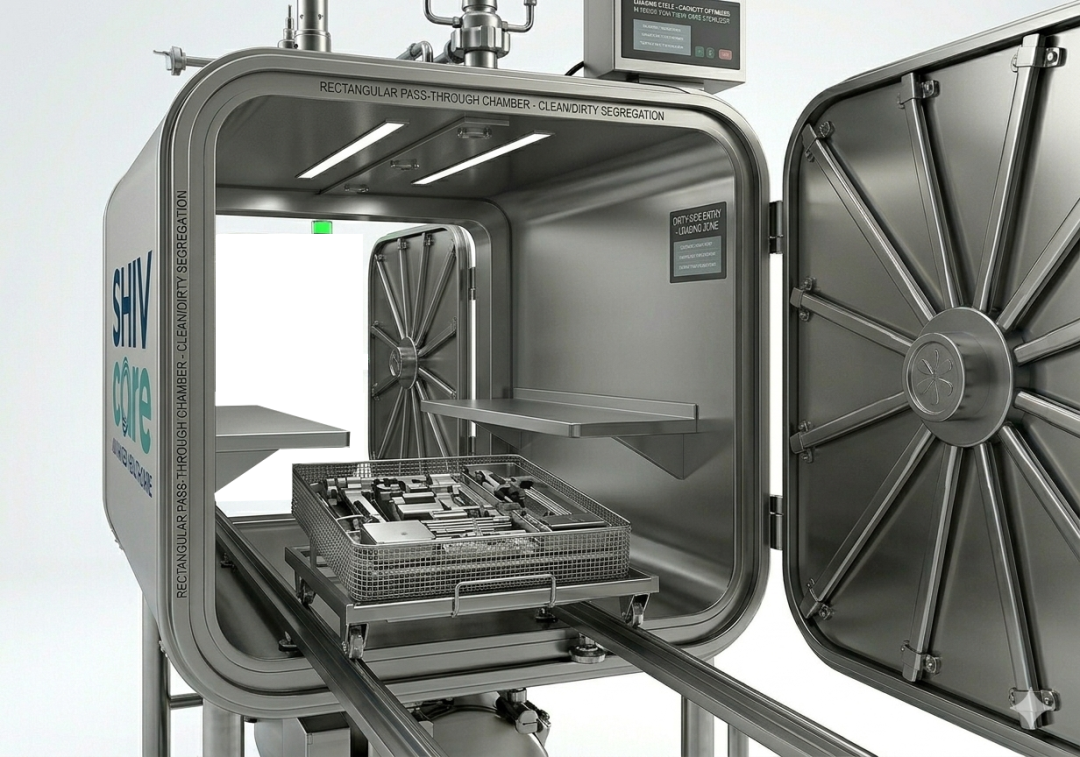

The double-door pass-through configuration places the unloading door in the clean zone while the loading door opens in the dirty/decontamination zone — a mandatory design feature for NABH Chapter 4 (CSSD) accreditation and CSSD best practice guidelines.
Like all SHIVcare sterilizers, the rectangular model is constructed from AISI 316L (Low Carbon) Stainless Steel with hydraulically formed zero-joint end rings, operating at 1.2 kg/cm² to 2.2 kg/cm², and controlled via Siemens/Allen-Bradley PLC with 7-inch colour touch HMI and tamper-proof batch recording.
Rectangular SS 316L Zero-Joint ChamberHydraulically formed end panels in AISI 316L Low Carbon Stainless Steel. No weld seams on the pressure boundary. Superior tray-loading geometry versus cylindrical chambers.
Double-Door Pass-Through DesignAvailable on all models 300L and above. Entry door in decontamination zone; exit door in sterile/clean zone. Mechanical interlock prevents both doors opening simultaneously — mandatory for NABH CSSD compliance.
Operating Pressure: 1.2 – 2.2 kg/cm²Supports 121°C gravity cycle and 134°C high-vacuum SFPP cycle. Design pressure 3.0 kg/cm² with pressure relief valve factory-set per IS 3829 Part 1.
Multi-Stage Pre-Vacuum (SFPP)Steam-flush pressure-pulse vacuum system achieves residual air below 1 mBar — critical for sterilizing complex instrument trays, wrapped sets, and hollow goods in large-volume rectangular chambers.
PLC Touch-Screen with Batch RecordsSiemens S7 / Allen-Bradley PLC with 7-inch colour HMI. Pre-validated cycle programmes. USB export and printer interface for complete electronic batch records meeting NABH and CDSCO requirements.
Temperature Uniformity ±0.5°CSS steam jacket and chamber geometry engineered for ±0.5°C temperature uniformity during holding phase per IS 3829 Part 2 — validated across the full volume of the rectangular chamber.
IQ / OQ / PQ Validation PackageComplete Installation Qualification, Operational Qualification, and Performance Qualification documentation provided at commissioning — directly accepted for NABH accreditation submission.
Structured fact sheet for procurement committees and biomedical engineering teams.
| Parameter | Specification | Standard |
|---|---|---|
| Product Type | Rectangular HPHV Steam Sterilizer | IS 3829 |
| Chamber Shape | Rectangular (box design) | IS 3829 P1 |
| Chamber Material | AISI 316L (Low Carbon) Stainless Steel | IS 3829 P1 |
| End Panel Construction | Hydraulically formed — zero weld joints on pressure boundary | Proprietary |
| Working Pressure | 1.2 kg/cm² (min) to 2.2 kg/cm² (max) | IS 3829 P2 |
| Design Pressure | 3.0 kg/cm² | IS 3829 P1 |
| Sterilization Temp (121°C) | 121°C ± 0.5°C — Gravity Cycle | IS 3829 P2 |
| Sterilization Temp (134°C) | 134°C ± 0.5°C — High-Vacuum SFPP Cycle | IS 3829 P2 |
| Temperature Uniformity | ±0.5°C during holding phase | IS 3829 P2 |
| Vacuum System | Multi-stage pre-vacuum (SFPP) | Residual air <1 mBar | EN 285 |
| Door Configuration | Single door (standard) | Double-door pass-through (standard option) | NABH CSSD |
| Door Interlock | Mechanical + electrical — both doors cannot open simultaneously | IS 3829 P1 |
| Control System | PLC (Siemens S7 / Allen-Bradley) + 7″ colour HMI | NABH Compliant |
| Cycle Types | Gravity · Pre-Vacuum · Flash · Bowie-Dick · Leak Rate · Custom | EN 285 |
| Data Recording | USB export · Printer interface · Tamper-proof batch log | CDSCO / NABH |
| Chamber Volumes | 300L · 450L · 600L · 750L · 800L · 1000L (custom available) | To Order |
| Power Supply | 415V / 3-Phase / 50Hz | India Standard |
| Steam Source | Built-in electric generator OR hospital steam supply | Configurable |
| Certifications | IS 3829 P1 & P2 (BIS) | ISO 13485:2016 | CE Marking | All Current |
| Validation Docs | IQ / OQ / PQ documentation | FAT available | Validation Ready |
| Warranty | 24 months — parts & labour | India Market |
| HSN Code | 8419 — 12% GST applicable | GST Compliant |
| Country of Manufacture | India — Vadodara, Gujarat | Make in India |
